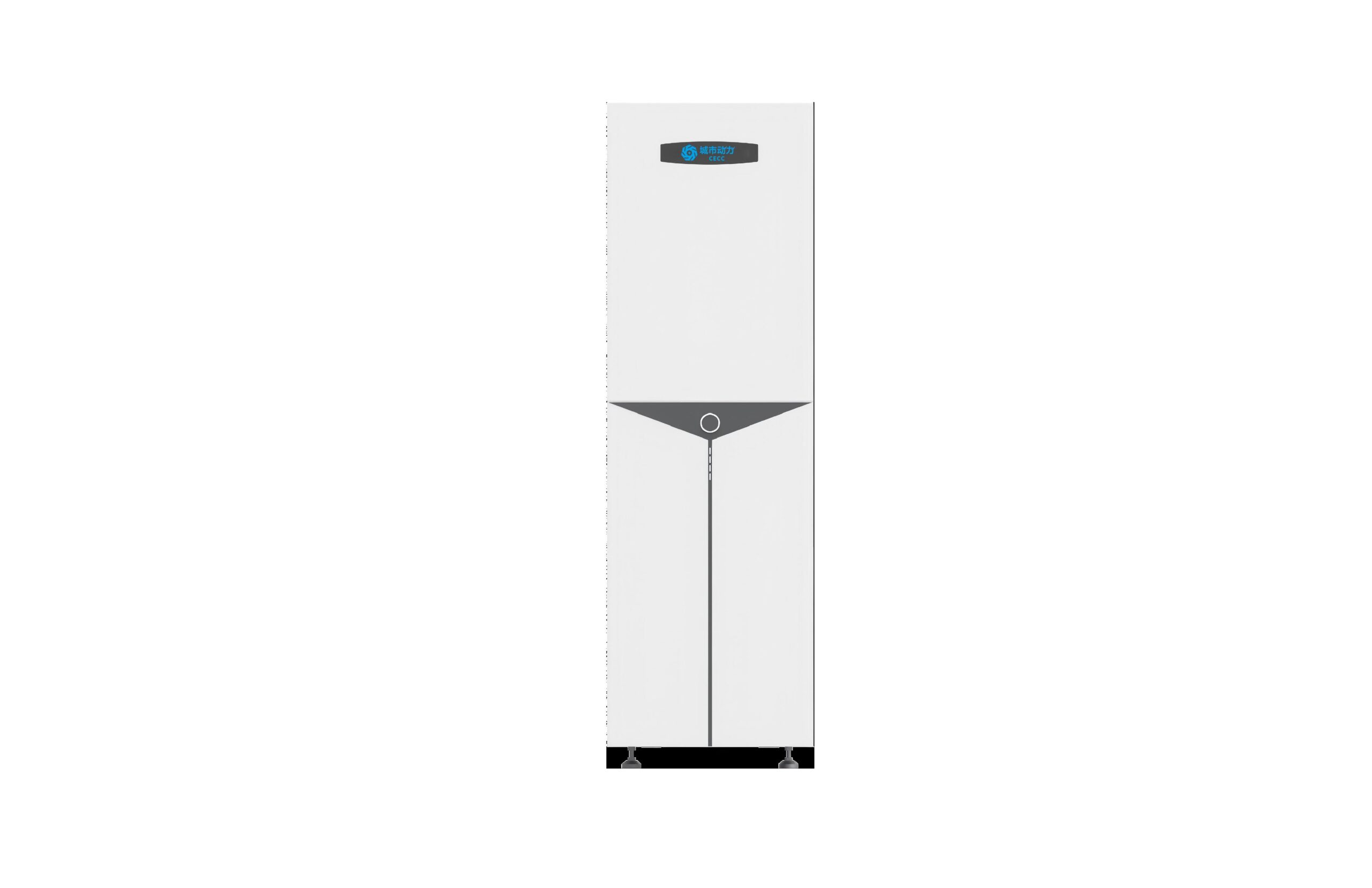

CT2P-14 Residential Energy Storage System

The CT2P-14 Residential Energy Storage System is a premium all-in-one home battery solution designed to maximize solar energy utilization, provide reliable backup power, and ensure uninterrupted energy supply during grid outages.

Featuring a high-capacity 14.3kWh LFP battery, intelligent energy management, advanced safety protection, and remote monitoring capabilities, the CT2P-14 delivers exceptional performance for modern residential energy storage applications.

Its ultra-thin design, robust IP-rated protection, and seamless integration with solar PV systems make it an ideal choice for homeowners seeking energy independence and long-term savings.

Request Product Enquiry Download Technical Datasheet

14.3kWh usable battery capacity
Lithium Iron Phosphate (LFP) battery technology
Stable and long-lasting performance
Ideal for residential backup and solar applications

Only 297mm box thickness
Compact and space-saving installation
Modern and elegant appearance
Suitable for indoor and outdoor installation

Supports critical household loads
Grid-to-off-grid switching time less than 10ms
Continuous power during outages
Enhanced energy security for homes

Real-time system monitoring
Mobile application integration
Remote maintenance and firmware upgrades
Ethernet, Wi-Fi, and Bluetooth connectivity

Supports dual MPPT tracking
Optimizes photovoltaic energy production
Improved solar self-consumption
Maximizes return on solar investment

DC Arc Protection
LFP battery chemistry
Dustproof and waterproof design
Multiple international safety certifications

Applications

Residential energy storage

Solar self-consumption systems

Home backup power

Smart energy management

Peak shaving and energy cost reduction

Energy independence solutions

Product Benefits

Energy Independence

Store excess solar energy and use it whenever needed, reducing dependence on utility providers.

Lower Electricity Bills

Optimize energy consumption and maximize solar self-consumption to reduce monthly energy expenses.

Reliable Emergency Backup

Protect essential appliances and household systems during power outages with seamless backup functionality.

Long Service Life

The advanced LFP battery system delivers over 8,000 charge-discharge cycles for long-term reliability.

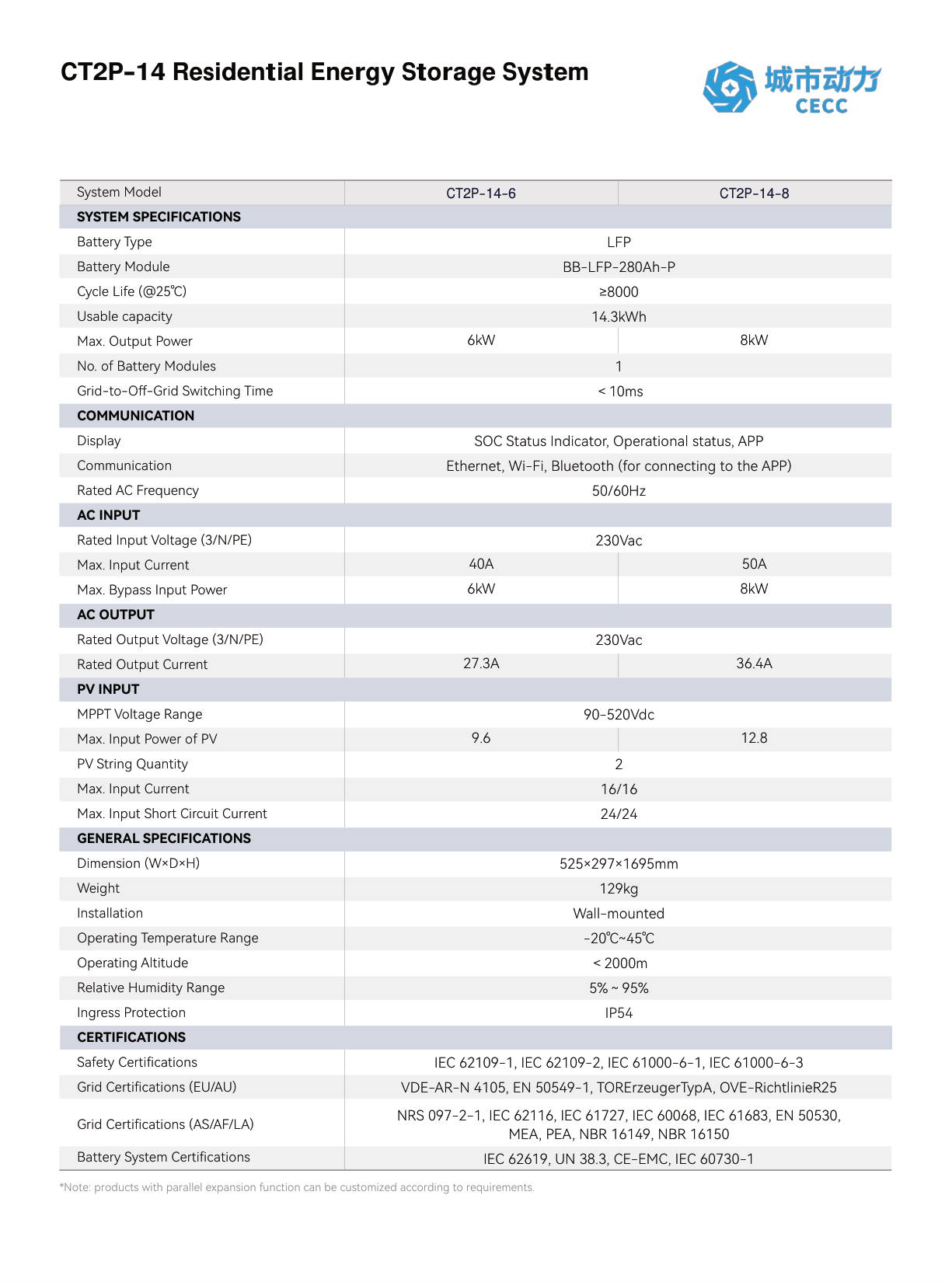

Technical Highlights

Battery Capacity	14.3kWh
Battery Type	LFP (Lithium Iron Phosphate)
Cycle Life	≥8000 Cycles
Protection Rating	IP54
Installation	Wall Mounted
Communication	Ethernet, Wi-Fi, Bluetooth
Operating Temperature	-20°C to 45°C
Operating Altitude	<2000m
Relative Humidity	5% - 95%

System Models

CT2P-14-6

Maximum Output Power: 6kW
Rated Output Current: 27.3A
Maximum PV Input Power: 9.6kW
Rated Input Current: 40A

CT2P-14-8

Maximum Output Power: 8kW
Rated Output Current: 36.4A
Maximum PV Input Power: 12.8kW
Rated Input Current: 50A

Communication & Monitoring

SOC Status Indicator

Status Monitoring

Mobile App Control

Remote Diagnostics

Firmware Updates

Ethernet

Wi-Fi

Bluetooth

General Specifications

Physical Specifications

Dimensions: 525 × 297 × 1695 mm
Weight: 129kg
Installation Type: Wall-Mounted

Environmental Specifications

Operating Temperature: -20°C to 45°C
Operating Altitude: Less than 2000m
Relative Humidity: 5% to 95%
Protection Rating: IP54

Why Choose CT2P-14?

✓ High-Capacity 14.3kWh Battery Storage

✓ Ultra-Thin Premium Design

✓ Fast <10ms Backup Switching

✓ Dual MPPT Solar Optimization

✓ Smart Remote Monitoring

✓ Advanced DC Arc Protection

✓ Long-Life LFP Battery Technology

✓ 8,000+ Cycle Life

✓ International Safety Certifications

✓ Reliable Residential Energy Backup

Request a Product Consultation

Looking for a reliable residential energy storage solution?

Contact our team today to discover how the CT2P-14 Residential Energy Storage System can help maximize solar energy usage, reduce electricity costs, and provide uninterrupted backup power for your home.

Request Product Enquiry Download Datasheet
