CT-6 Home Energy Protector

The CT-6 Home Energy Protector is an advanced residential energy storage system (ESS) designed to provide reliable backup power, intelligent energy management, and seamless integration with solar PV systems. Powered by CATL LFP battery technology and AI-driven energy optimization, the CT-6 delivers exceptional energy density, safety, and long-term performance for modern homes.

Whether used for solar self-consumption, EV charging, home backup power, or energy cost optimization, the CT-6 offers a scalable and future-ready solution.

  • 5.06kWh capacity per battery unit
  • 141Wh/kg energy density
  • Compact and space-saving design

  • Up to 11.2kW operating power per unit
  • Supports residential loads and critical appliances
  • Fast response energy delivery

  • Intelligent energy optimization
  • Remote monitoring via mobile application
  • Real-time system status and performance tracking

  • Operating temperature: -20°C to 45°C
  • Dustproof and waterproof protection
  • Automatic low-power mode activation during faults

  • CATL LFP battery technology
  • Isolation protection
  • Multiple international safety certifications
Applications

Applications

Solar self-consumption

Home backup power

EV charging support

Energy cost optimization

Smart home energy management

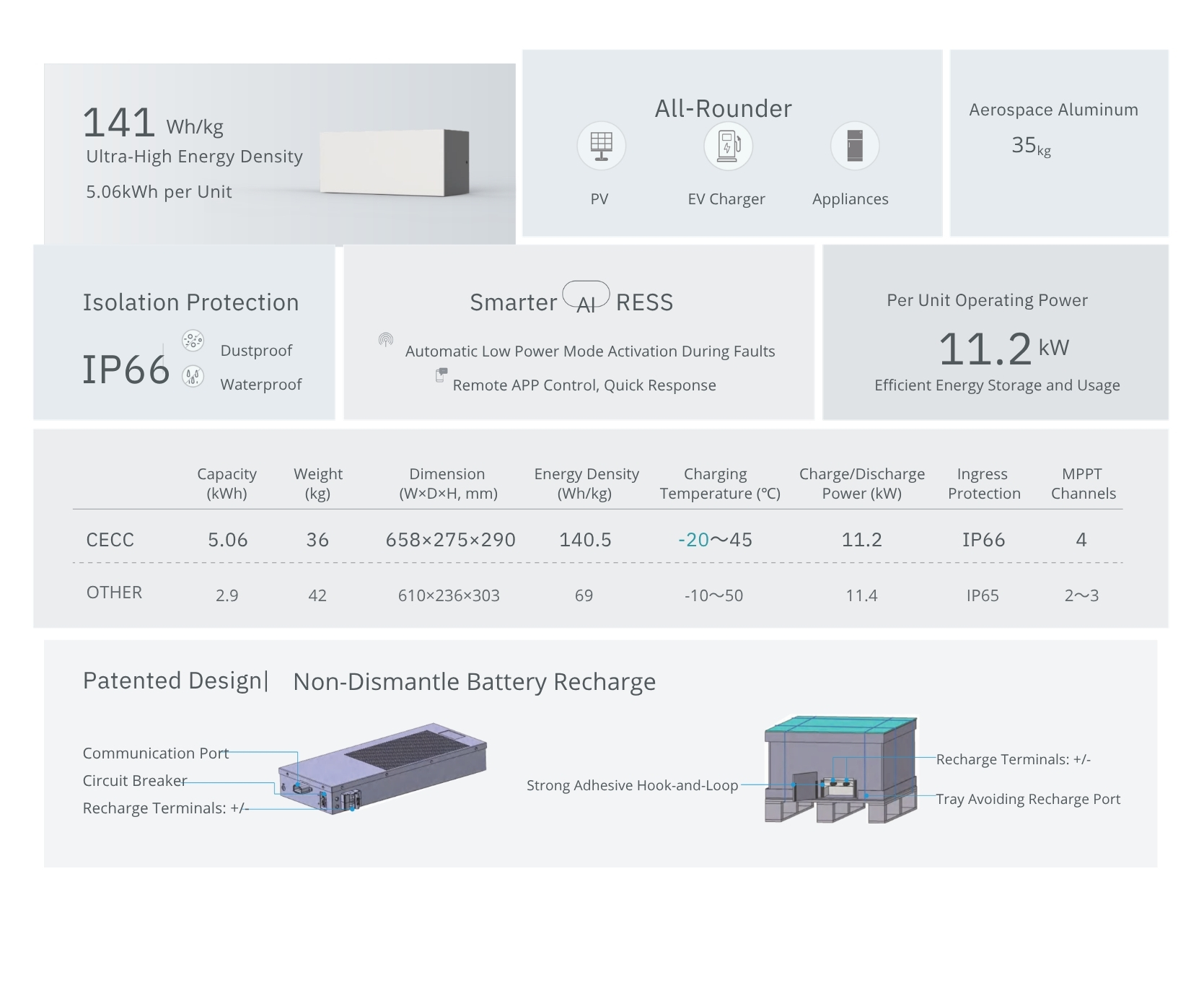

Technical Highlights

Battery Type CATL LFP
Capacity Per Unit 5.06kWh
Energy Density 141Wh/kg
Operating Power 11.2kW
Operating Temperature -20°C to 45°C
Protection Rating IP66
Weight Per Unit 35kg
MPPT Channels 4

System Models

CT-6-8 Model

  • Maximum Output Power: 8kW
  • Usable Capacity: 10kWh–20kWh
  • Battery Modules: 2–4
  • Grid-to-Off-Grid Switching Time: <10ms

CT-6-10 Model

  • Maximum Output Power: 10kW
  • Usable Capacity: 10kWh–20kWh
  • Battery Modules: 2–4
  • Grid-to-Off-Grid Switching Time: <10ms

Communication & Monitoring

SOC Status Indicator
Status Monitoring
Mobile App Control
Remote Diagnostics
Firmware Updates
Ethernet
Wi-Fi
Bluetooth

General Specifications

Communication & Monitoring

  • SOC Status Indicator
  • Operational Status Display
  • Mobile App Integration
  • Ethernet Connectivity
  • Wi-Fi Connectivity
  • Bluetooth Connectivity

General Specifications

  • Installation Type: Wall-Mounted
  • Operating Altitude: <2000m
  • Relative Humidity: 5%–95%
  • Ingress Protection: IP54
  • Rated AC Frequency: 50/60Hz

Certifications

IEC 62109-1 IEC 62109-2 IEC 61000-6-1 IEC 61000-6-3 VDE-AR-N 4105 EN 50549-1 TOR Erzeuger Typ A OVE Richtlinie R25 IEC 62619 UN 38.3 CE-EMC IEC 60730-1

Why Choose CT-6?

✓ AI-Powered Energy Optimization

✓ High-Efficiency CATL LFP Battery Technology

✓ Solar & EV Charger Compatible

✓ Fast <10ms Backup Switching

✓ Scalable 10kWh–20kWh Capacity

✓ Remote Monitoring via Mobile App

✓ Reliable Performance in Extreme Temperatures

✓ Internationally Certified Safety Standards

Request a Product Consultation

Looking for a reliable home energy storage solution?

Contact our team today to learn how the CT-6 Home Energy Protector can help reduce energy costs, maximize solar usage, and provide uninterrupted backup power for your home.
